Hydrotechnik overview of HT-PD PR140 Pressure sensor

HT-PD PR140 Pressure sensor
Hydrotechnik in china
Hydrotechnik HT-PD PR140 data download

HT-PD PR140 Pressure sensor

Product range pressure sensors type HT-PD PR140
The latest thinfilm WSG pressure sensor type HT-PD PR140 from Hydrotechnik was developed in order to measure pressures and pressure peaks within an extended temperature band. Its strongest attributes lie in the following areas:
• Reliability
• Repeatability
• Temperature stability
• Robust industrial design
• Media compatibility
• Resistance to thermal shocks and vibrations

Hydrotechnik Technical data of HT-PD PR140 Pressure sensor

HT-PD PR140 Technical data
Overload range 1.5 x nominal pressure
Burst pressure 3 x nominal pressure
Signal type Two wire analog (4 ... 20 mA), three wire analog (0 ... 10 VDC)
Supply voltage Ub
... at 4 ... 20 mA 10...30VDC
... at 0 ... 10 VDC 12...32VDC
Current consumption 6.5mA
Overvoltage protection 32VDC
Error limit (of fi nal value) comprises the infl uences non-linearity, hysterese, repeatability, zero-point- and span error
... at +22 °C (room temperature) ±0.5%
... at -15 ... +85°C ±1%
... at +85 ... +100°C ±2.5%
... at -40 ... -15°C ±2.5%
Compensation temperature range -40...+100
Non-linearity < ± 0.4 % of final value
Reproducability < ± 0.1 % of final value
Hysterese < ± 0.1 % of final value
Long-term stability < ± 0.1 % of final value/year
Response time < = 1 ms (10 ... 90 %)
Frequency range < = 1 kHz
Isolation resistance min. 100 MOhm
Total resistance RG = (Ub -10 V) / 20 mA (at output signal 4 ... 20 mA)
Load resistance RL = > 5 kOhm (at output signal 0 ... 10 VDC)
Number of load cycles > 1 x 107
Medium temperature -40...+125
Environmental temperature -40 ... +105 °C (short term +125 °C)
Storage temperature -40...+125
EMV test EN 50081-2, EN 50082-2
Vibrational stability 5 mm 10 ... 32 Hz, 20 g 32 ... 500 Hz, DIN EN 60068-2-6
Shock stability 50 g (11 ms half-sine)
Electrical measuring connector 4 pole device connector,DIN EN 175301-803, type A, Pg9
Mechanical connection thread ISO228-G1/4A
Sealing material profi le seal ring acc. to DIN 3869, FKM
Protection type (EN 60529 / IEC 529) IP 65 (with connecting cable Ø 6 ... 8 mm)
Casing material non-corrosive high-grade steel
Membrane material non-corrosive high-grade steel
Tightening torque 40 Nm (± 5 Nm)
Weight ~ 117 g

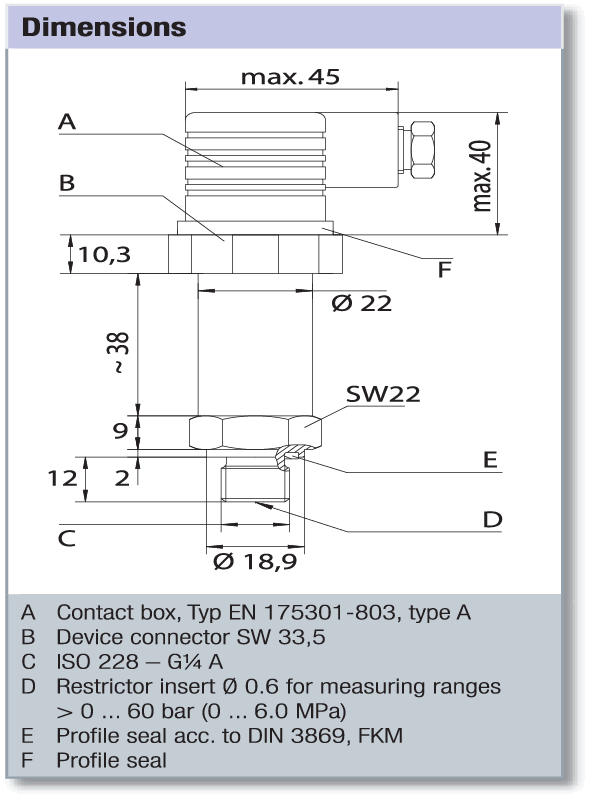

Hydrotechnik HT-PD PR140 Dimensions

Hydrotechnik HT-PD PR140 Electrical connector

Pin assignment 4 ... 20 mA (two wires) 0 ... 10 V (three wires)
1 + Ub / signal + 1 + Ub
2 – Ub / signal – 2 – Ub / signal – / GND
3 free 3 Signal +

Hydrotechnik pressure sensors HT-PD PR140 4...20mA output

Measuring range(MPa) Measuring range(Bar) HT-PD OR140 4...20mA
-0.1...0MPa -1...0bar 3403-30-D1.37
-0.1...0.6MPa -1...6bar 3403-32-D1.37
-0.1...1MPa -1...10bar 3403-54-D1.37
0...0.6MPa 0...6bar 3403-28-D1.37
0...1.0MPa 0...10bar 3403-26-D1.37
0...1.6MPa 0...16bar 3403-41-D1.37
0...4.0MPa 0...40bar 3403-31-D1.37
0...6MPa 0...60bar 3403-21-D1.37
0...10.0MPa 0...100bar 3403-16-D1.37
0...20.0MPa 0...200bar 3403-10-D1.37
0...25.0MPa 0...250bar 3403-17-D1.37
0...40.0MPa 0...400bar 3403-15-D1.37
0...60.0MPa 0...600bar 3403-18-D1.37
0...100.0MPa 0...1000bar 3403-29-D1.37
Hydrotechnik pressure sensors HT-PD PR140 0...10VDC output
Measuring range(MPa) Measuring range(Bar) HT-PD PR140 0...10VDC
-0.01...0MPa -0.1...0bar 3403-60-D1.39
-0.1...0.2MPa -1...2bar 3403-68-D1.39
-0.1...0.6MPa -1...6bar 3403-32-D1.39
0...0.02MPa 0...0.2bar 3403-61-D1.39
0...0.2MPa 0...2bar 3403-25-D1.39
0...0.6MPa 0...6bar 3403-28-D1.39
0...1.0MPa 0...10bar 3403-26-D1.39
0...2.0MPa 0...20bar 3403-27-D1.39
0...2.5MPa 0...25bar 3403-40-D1.39
0...4.0MPa 0...40bar 3403-31-D1.39
0...6.0MPa 0...60bar 3403-21-D1.39
0...10.0MPa 0...100bar 3403-16-D1.39
0...20.0MPa 0...200bar 3403-10-D1.39
0...25.0MPa 0...250bar 3403-17-D1.39
0...40.0MPa 0...400bar 3403-15-D1.39
0...60.0MPa 0...600bar 3403-18-D1.39
0...100.0MPa 0...1000bar 3403-29-D1.39
Hydrotechnik's HT-PD PR140 related products
